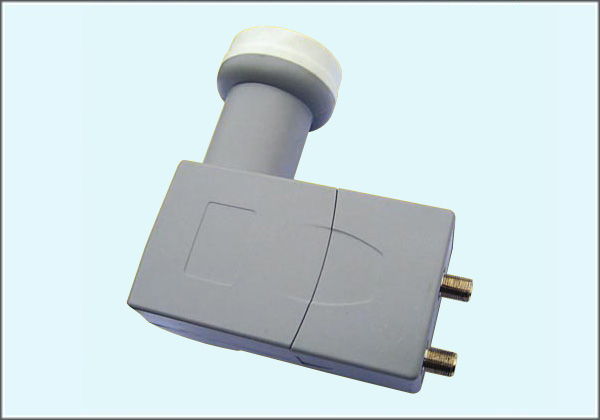

RF Input:
Low Band: 10.70-11.70GHz
Input Frequency Range:
High Band: 11.70-12.75GHz
IF Output: Low Band: 950-1950MHz
Output Frequency Range:
High Band: 1100-2150MHz
Output Connector Type: 75&Omega F
Female Connector
Output VSWR: 2.5:1(max)
Local Oscillator:
Low Band:9.75(GHz)
L.O Frequency: High Band:10.60(GHz)
L.O.Frequency: -55dBc/Hz(@1KHz)
Phase Noise: -80dBc/Hz(@10KHz) -100dBc/Hz(@100KHz)
Conversion Gain: 50dB(min.) 60dB(max)
Gain Flatness
(AcrossAny27MhzSegment): ±0.5dB (typ.)
Output Power@1dB Gain Compression: 0dBm
Noise Figure: 0.6dB(typical)
Image Rejection: 45dB(min.)
Cross POL.Isolation: 20dB(min.)
DC Current Consumption: 280mA(MAX)
Operating Voltage:
(1)Vertical:11.5~14.0Vdc
(2)Horizontal:16.0~19.0Vdc
(3)HingBand:Continuous22KHz±4KHz
Operating Temperature Range: -40oC~+60o C
